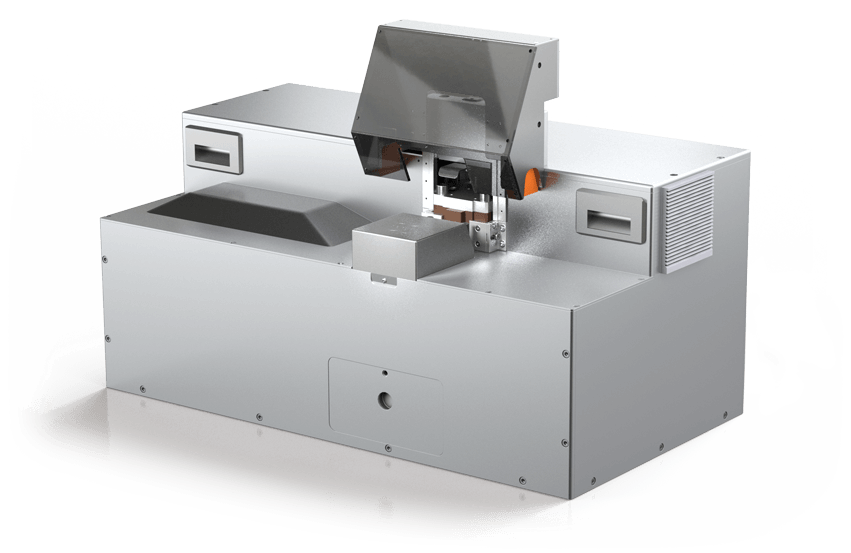

L-Splice 100-200

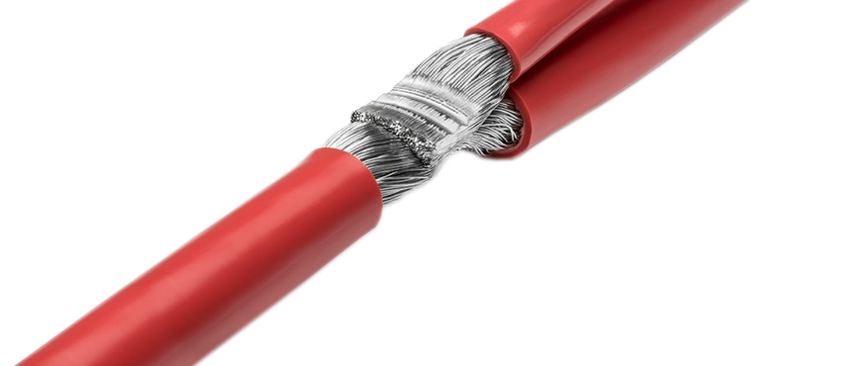

The L-Splice is designed for welding splices in the upper cross-section range of up to 100 mm² or 200 mm². The L-Splice is well suited for both manual operation and integration into a fully-automated production system. There are two different design variations available for optimal ergonomic operation. Regardless of which model you choose, machines of the L-Splice series are built to withstand high thermal and mechanical stress. Further cross-sections and applications are possible - please contact us.

You benefit from these advantages:

• Cross-section range L-Splice 100: 20 mm² to 100mm²
• Cross-section range L-Splice 200: 20 mm² to 200mm²
• Suitable for Al, Cu cable and cascade welding
• Comprehensive process monitoring and documentation
• Connection to higher-level ERP systems
• Dynamic setpoint adjustment and statistics functions
• Cable fixing for manual insertion of cables
• Extremely short cycle times for very large cable cross-sections
• High-precision digital position measuring system for recording the node geometry
• Various user levels and access management via key switch
• Integrated trash box enables quick and easy maintenance and cleaning of the machine
• Touch monitor
