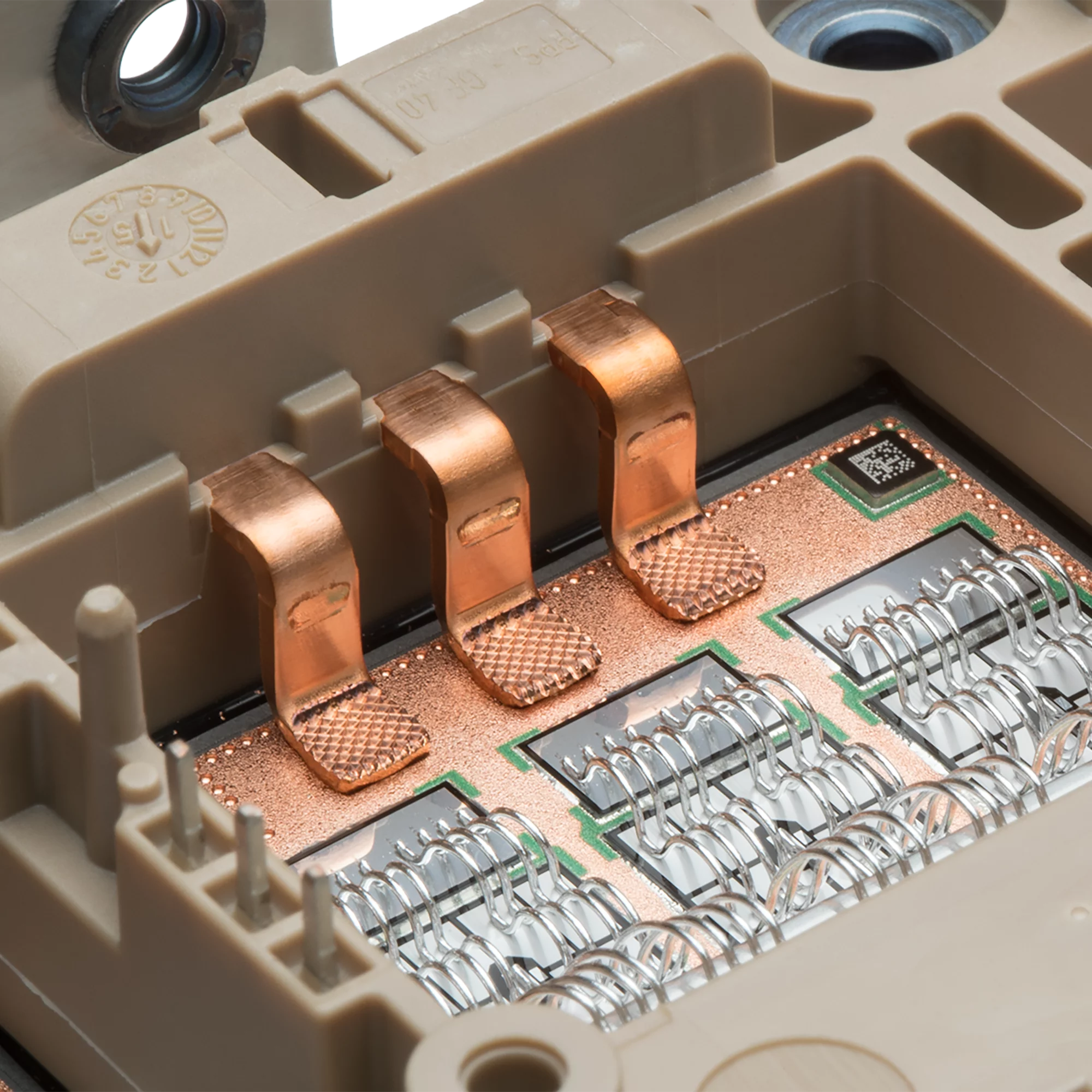

Pulse inverter module with ultrasonically welded power contacts

Copper terminals on DBC substrate. The terminals are located in a fixed frame module and are welded to the small feet.

Features:

• Thickness: 1,2 mm
• Welding area: 3 x 3,5 mm
