CFG shaft earthing system on the gearbox side from Schunk Transit Systems
Gearbox-mounted grounding system for railway applications
  Gearbox-mounted grounding system for railway applications
 Gearbox-mounted grounding system for railway applications
undefined

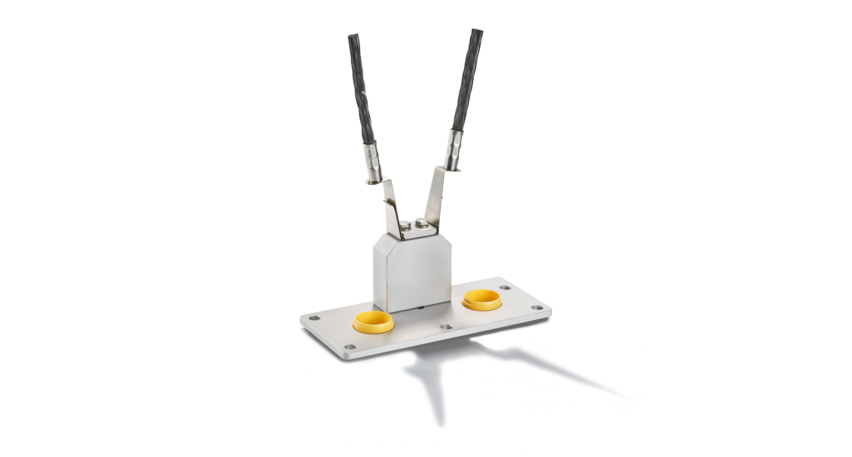

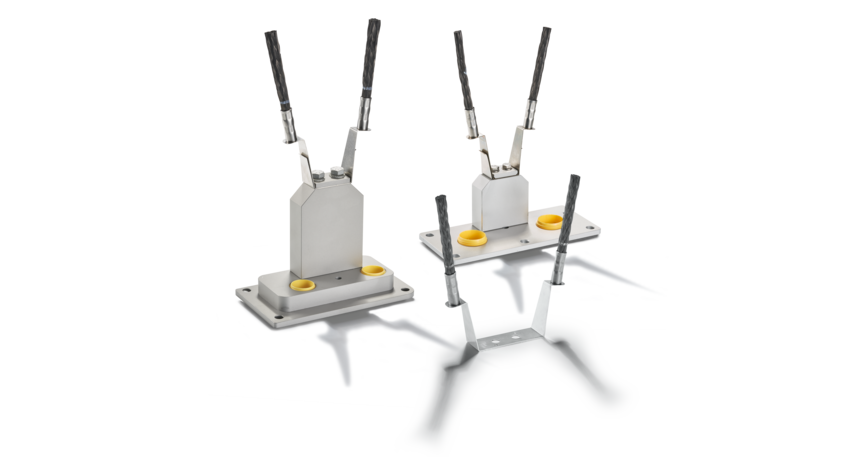

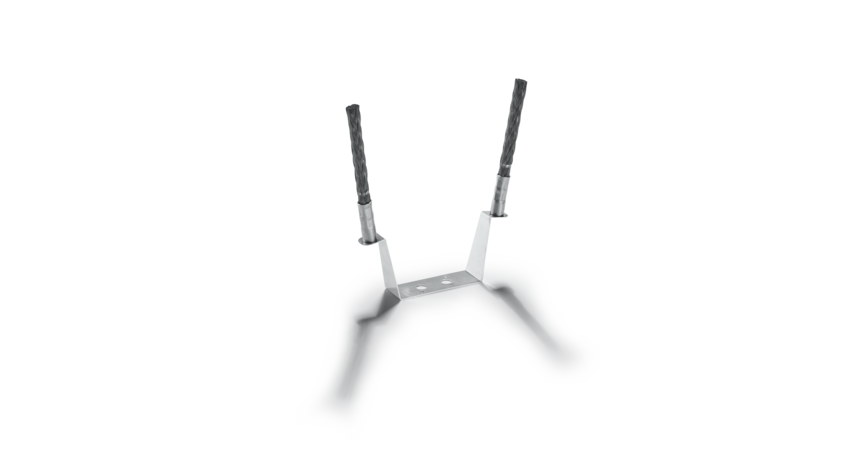

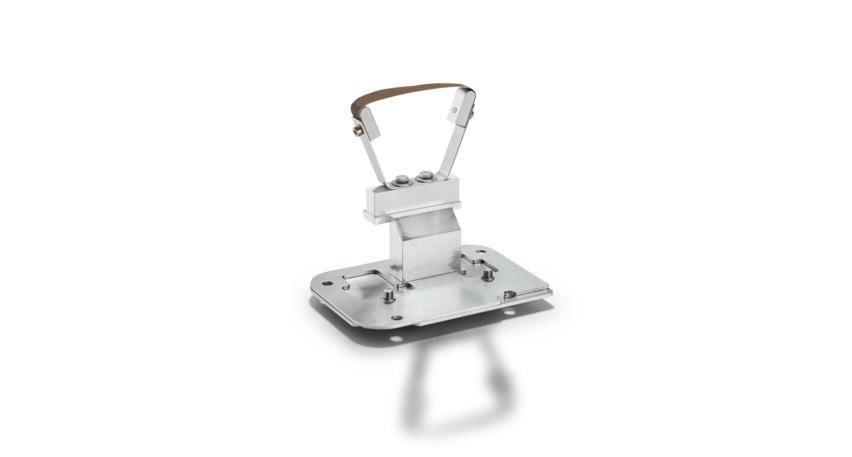

Gear/Gearbox-mounted CFG Systems

Vagrant shaft currents in inverter-controlled AC motors can cause bearing and gearbox damage, which in turn can lead to increased noise and heat generation and ultimately force a costly shutdown. This is exactly what our patented Carbon Fiber Grounding (CFG) systems protect against. The carbon fiber shaft grounding systems reliably dissipate interference currents, protect against damage and increase the service life of the vehicle fleet. Our transmission-side CFG systems can be tailored to any transmission or engine and mounted on the existing interface with little effort.

You benefit from these advantages:

  • Patented systems for perfect grounding
  • Reliable protection against expensive damage and unplanned downtime
  • Resistant to strong vibrations
  • Easy assembly and disassembly
  • Customized design
  • Tolerance compensation of the axle clearance
Contact request

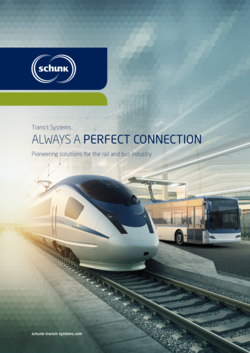

Brochure: Schunk Transit Systems
Brochure: Schunk Transit Systems

Pioneering solutions for the rail and bus industry

Add
Brochure: Perfect Grounding
Brochure: Perfect Grounding

CFG - Carbon Fiber Grounding

Add

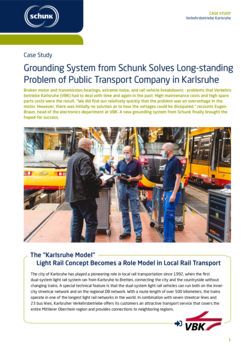

Case Study: Verkehrsbetriebe Karlsruhe
